Simulink Control Design™ PID tuning tools let you tune single-loop control systems containing continuous or discrete PID Controller or PID Controller (2DOF) Simulink blocks. To decide which PID tuning tool is right for your application, see Choose a Control Design Approach. PID Tuner provides a fast and widely applicable single-loop PID tuning method for the Simulink® PID Controller blocks. With this method, you can tune PID controller parameters to achieve a robust design with the desired response time. A typical design workflow with the PID Tuner involves the following tasks: (1) Launch the PID Tuner. When launching, the software automatically computes a linear plant model from the Simulink. PID Tuning by Commercial PID. If you have access to a PID controller unit and a compatible thermal probe that fits down into your hotend, you can use them to tune your PID and calibrate your thermistor. Connection of the output of the PID to your heater varies depending on your electronics.
This example shows how to automatically tune a PID Controller block using PID Tuner.
Introduction of the PID Tuner
PID Tuner provides a fast and widely applicable single-loop PID tuning method for the Simulink® PID Controller blocks. With this method, you can tune PID controller parameters to achieve a robust design with the desired response time.
A typical design workflow with the PID Tuner involves the following tasks:
Introduction of the PID Tuner. PID Tuner provides a fast and widely applicable single-loop PID tuning method for the Simulink® PID Controller blocks. With this method, you can tune PID controller parameters to achieve a robust design with the desired response time. Feb 09, 2018 in this video, PID controller and PID tuning is shown. In this work a boost converter pid controller is taken and manual pid tuning is done with the help of Ziegler Nichols method and Tyrus.
(1) Launch the PID Tuner. When launching, the software automatically computes a linear plant model from the Simulink model and designs an initial controller.

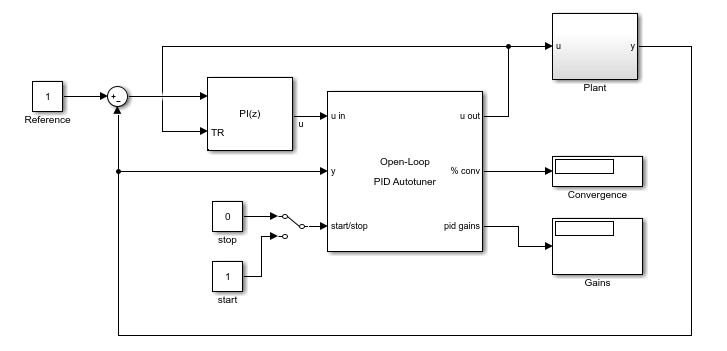

How To Auto Tune Pid Simulink Software
(2) Tune the controller in the PID Tuner by manually adjusting design criteria in two design modes. The tuner computes PID parameters that robustly stabilize the system.
(3) Export the parameters of the designed controller back to the PID Controller block and verify controller performance in Simulink.
Open the Model
Open the engine speed control model with PID Controller block and take a few moments to explore it.
Design Overview
In this example, you design a PI controller in an engine speed control loop. The goal of the design is to track the reference signal from a Simulink step block scdspeedctrlpidblock/Speed Reference. The design requirement are:
Settling time under 5 seconds
Zero steady-state error to the step reference input.
In this example, you stabilize the feedback loop and achieve good reference tracking performance by designing the PI controller scdspeedctrl/PID Controller in the PID Tuner.
